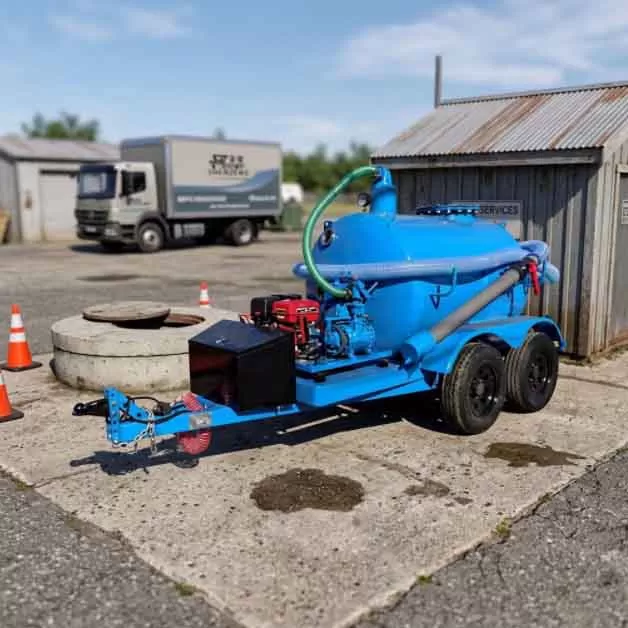

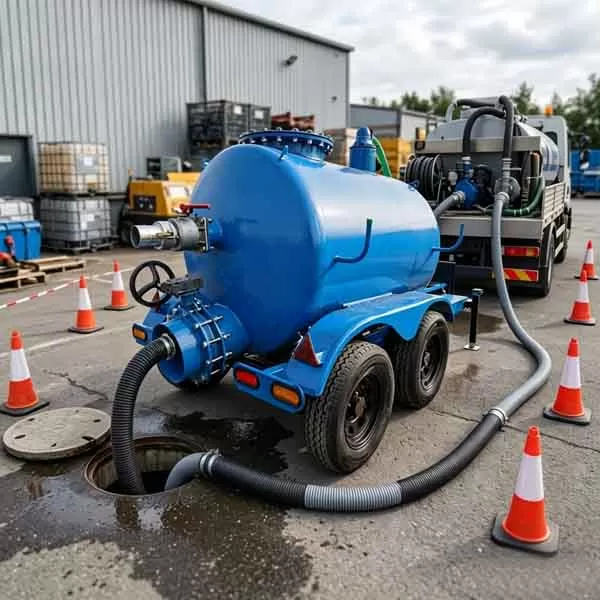

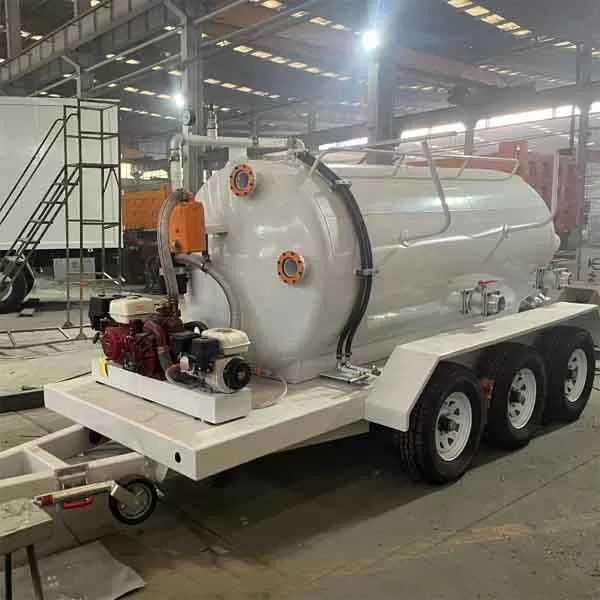

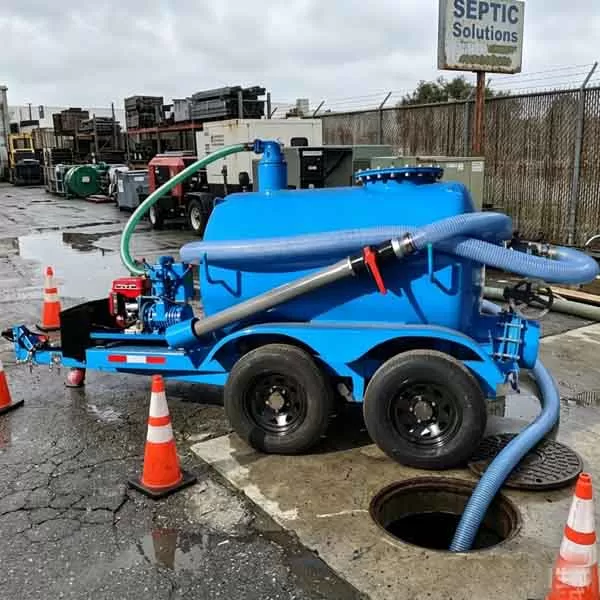

A septic trailer also known as a vacuum honey wagon or honey sucker trailer—is a self-contained, mobile sanitation unit designed to be towed by SUVs, pickup trucks, or light-duty trucks. It utilizes an onboard diesel-powered vacuum pump to generate negative pressure for the suction, storage, and transport of materials such as septic tank contents, sewage, sewer sludge, and livestock waste. Eliminating the need for large, specialized vacuum trucks, it excels at flexible operations in small sites, narrow spaces, and dispersed locations, making it a mainstream piece of light equipment in the international sanitation and septic service industries.

Core Structural Components of the Septic Trailer

Vacuum Waste Storage Tank (Core Body)

Material: Thickened carbon steel with internal and external anti-corrosion epoxy coating (optional 304 stainless steel for premium models); resistant to corrosion from sewage, acids, and alkalis. Elliptical pressure-bearing design ensures the tank retains its shape under negative pressure.

Standard Capacities: 1,000–3,000 gallons (3.8–11 m³); 1,000–1,500 gallons for small residential complexes or campsites; 2,000–3,000 gallons for commercial properties or livestock farms.

Ancillary Features: Top access manhole (for sludge removal), overflow inspection port, pressure relief valve, large-diameter discharge butterfly valve, and anti-overflow float alarm system.

Independent Diesel Vacuum Power Unit

Self-contained unit with a single- or twin-cylinder diesel engine (does not rely on the towing vehicle's power); equipped with a water-circulating or rotary-vane vacuum pump. Achieves up to 93% vacuum, 6-meter suction lift, and flow rates of 50–300 gallons/minute; capable of rapidly suctioning viscous sludge and compacted waste. Includes oil filters and oil-water separators to protect the pump from debris damage.

Dual-Axle Towing Chassis

Standard dual-axle load-bearing suspension with heavy-duty leaf springs, suitable for unpaved construction sites and rural dirt roads; features wide off-road vacuum tires for high load-bearing capacity.

Front-end standard towing hitch (universal 2-inch ball hitch), reflective safety markings, tail lights, and parking support jack ensure stability and prevent tipping when fully loaded; optional braking system available.

Suction Hose Assembly

Large-diameter, steel-wire reinforced corrugated suction hose; wear-resistant and tear-resistant, suitable for dragging across oily or gravel-strewn outdoor surfaces; features quick-connect couplings and a red emergency shut-off valve for instant flow stoppage. Multi-line piping layout: side main suction inlet, large-diameter bottom discharge outlet, and circulation cleaning port (allowing for external connection of a clean water supply to flush the tank and piping).

Safety and control components

Vacuum pressure gauge, manual pressure relief valve, anti-overflow float switch, emergency stop button, tank cleaning port, and pre-filtration canister for sediment (filters out stones and fabric scraps to prevent pump clogging).

Features of the Septic Trailer

1. High Mobility and Unrestricted Access

Compact overall dimensions allow access to narrow residential lanes, private backyards, campsites, scenic area paths, and farm fields—areas inaccessible to large, integrated vacuum trucks. It can be towed by a standard pickup truck, eliminating the need for specialized sanitation vehicles.

Equipped with a balanced dual-axle chassis and a tight turning radius, it is highly adaptable for operations near manhole covers and in confined construction sites.

2. Independent Power System; Operation Independent of Tow Vehicle

Features a self-contained diesel-powered vacuum pump system. The tow vehicle is used only for transport; the engine can be turned off during suction operations to prevent wear and tear. It enables continuous, all-day operation in remote locations without access to grid power.

3. Fully Sealed Negative-Pressure Tank; Eco-Friendly and Leak-Proof

The pressure-resistant, sealed tank maintains negative pressure throughout the handling of sewage and sludge, ensuring no leakage or odor escape during transport and compliance with strict European and American environmental regulations.

Built-in oil-water separation and pre-filtration systems minimize direct pollution discharge, allowing for compliant transport to sewage treatment facilities.

4. Multifunctional Integration: Suction, Transport, and Self-Cleaning

Suction: Handles septic tanks, grease traps, sewer sludge, livestock manure slurry, construction site mud, and waste from portable toilets in scenic areas.

Transport: Safely transports liquid and solid waste to disposal sites in a sealed container.

Self-Cleaning: Connects to an external fresh water source to back-flush the tank and hoses, reducing the labor costs associated with manual sludge removal.

5. Durable and Low-Maintenance; Suitable for Long-Term Outdoor Use

The tank features a dual-layer anti-corrosion baked finish, resisting rust in rainy, snowy, or humid outdoor environments. The vacuum pump includes a pre-filter for sediment, significantly reducing the risk of clogging and wear. All hoses are made of reinforced rubber with steel-wire lining—resistant to dragging and chemical corrosion—and use standardized parts for easy replacement.

6. Lightweight, customizable options to meet diverse needs

Customizable capacity (1,000–5,000 gallons) with single or dual-axle configurations;

Optional add-ons: high-pressure freshwater cleaning system, sludge-liquid separation chamber, reversing alarm, LED work lights, and stainless steel tank;

Optional hydraulic discharge assist for rapid emptying of thick sludge.

7. Lower operating costs; ideal lightweight equipment for new business ventures

Investment costs are half that of large vacuum trucks; a single trailer can be paired with multiple pickup trucks for rotational operations—making it an ideal choice for small septic service providers, property management companies, farms, and camping resorts.

Key Application Scenarios for the Septic Trailer

Residential Septic System Maintenance (Core Use)

Regular sludge pumping and grease trap cleaning for single-family homes, villa communities, and rural self-built houses.

Commercial Facilities

Waste removal for mobile toilets at hotels, restaurants, schools, shopping malls, campsites, and RV parks.

Agricultural & Livestock Operations

Pumping manure pits at pig and cattle farms, transporting biogas slurry, and desilting sedimentation tanks.

Small-Scale Municipal Emergency Operations

Unclogging residential sewers, cleaning sludge from storm drains, recovering slurry at small construction sites, and emergency pipeline repairs.

Tourism & Scenic Areas

Sewage removal for mobile restrooms at wilderness campsites and temporary events; scheduled operations in remote areas lacking municipal sewer infrastructure.
